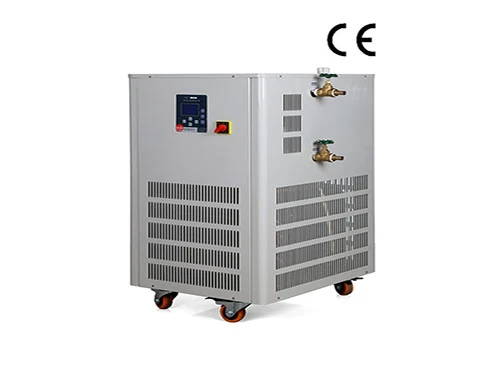

5L High and Low Temperature All-in-one Cycling Device
Function:
1. An innovate design on the base of low temp cooling liquid circulating pump and high pressure oil bath
2. Widely used Colleges and universities, environmental protection, biochemical, medical, chemical industry, scientific research, etc.
| Send an E-mail to us! | |
Follow Us:
|
|
 ( Click this button to inquiry ) |
|
PRODUCTS
- Glass Reactor Series
- Rotary Evaporator Series
- Water Vacuum Pump Series
- High and Low Temperature Cycling
- Cooling Liquid Circulating Pump Series
- Circulating Water or Oil Bath Series
- Drying Oven
- Hydrothermal Synthesis Reactor
- Microwave Chemical Reactor
- High Pressure Reactor Series
- Short Path Distillation
- Heating Mantle
- Spray Dryer
- Solvent Recovery Machine
- Stainless Steel Reactor
- Other
- Emulsifying Mixer Machine
Whatsapp:+8615036470528
E-mail: [email protected]
Address: 19/F, Block B, Guohong Mansion, Northeast corner of the intersection of Huagong Road and Lamei Street, Hi-Tech Development Zone, Zhengzhou City, Henan Province, China
Products Specialty:
1. Multi-function heating refrigerating, circulating
2. Safe device is advanced.
3. Excellent device for rotary evaporator, glass reactor etc sets react device
Feature:
1. New device owning Low temp instrument and high temp device to itself.
Under the market research and careful development, our company finishes the products
2. Adopt international original famous sealing compressor, reliable quality, and advanced performance.
3. Refrigeration compressors and other key parts take advantage of products with high quality machines and have high reliability and efficiency
4.Heating device is anti-pressure stainless steel capacity ,can be anti-corrosion, rust, protect low & high temp liquid pollution .

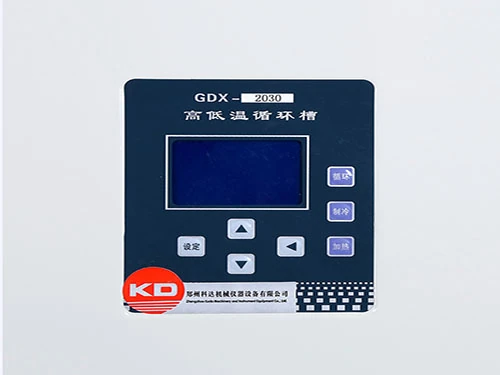

5. Digital display, clearly, operate easily
6.Multi-function(cooling,heating,circulating),reasonable power ,save lab space
7. High temp control use air switch press, solid relay, efficient and intelligent instrument, so start and operate is no sparkle, safely. Also it has Delay, overheating, overvoltage etc many protection function.
Ｍain technical data:
| Model | GDSC-1005 |
| Suitable for reactor volume (L) | 1L—5L |
| Cycle way | - 10℃—200℃ |
| Display accuracy | 0.1℃ |
| Cooling capacity | 500-1500W |
| Heating power | 3KW |
| Lift (m) | 8—12m |
| Flow (L/Min) | 25—30L/Min |
| Temperature control form | Microcomputer digital control |
| Safety protection | Have delay , leakage, over current, overheating production |
| Refrigeration components | Fully enclosed Compressors |
| Circulation pump | Fully enclosed special pump without leakage |
| Total power (W) | 4000W |
| Supply voltages | 220V 50HZ |
